Library FAQ

Library and Parts

How to create a schematic symbol library.

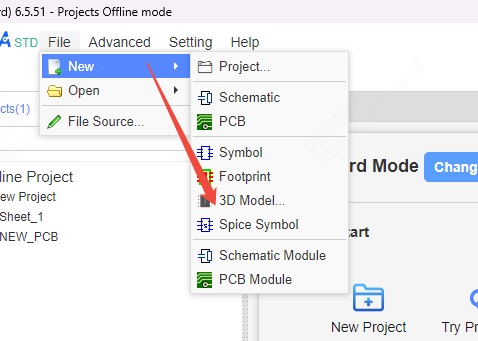

File > New > Symbol

How to tag my schematic library symbol.

After creating the library and saving, you can add a tag for it, and you can add and edit the tag at "Library":

How to create sub parts for multi-part components.

In personal part list, Right click the part then select Add Sub Part from the menu that opens:

How to change the footprint for a component.

https://docs.easyeda.com/en/Schematic/Footprint-Manager/index.html

How to add sub parts to a schematic.

You can add sub parts to a schematic one by one but please note that the sub parts prefix must be in the form of U1.1 U1.2 etc, and not U1.A U1.B.

How to create a PCB footprint.

How to change a component's footprint?

please refer at Footprint Manager

How to find components/parts/libraries?

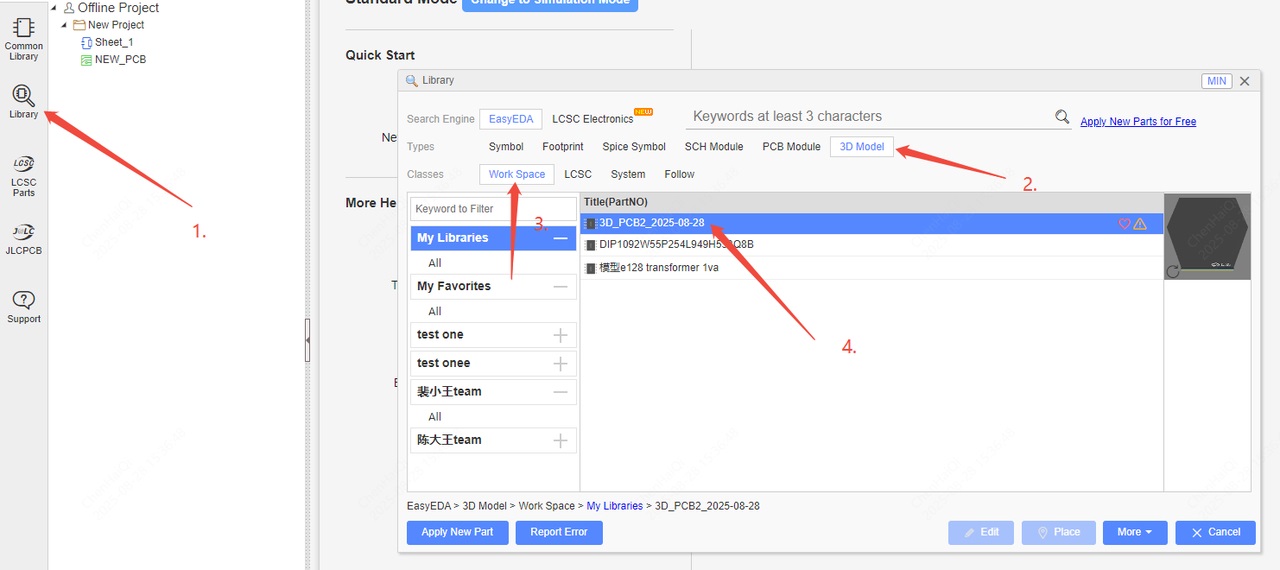

The component search function has been significantly improved to make finding part symbols and footprints quicker and easier. Press SHIFT+F or click on the Libraries icon on the left navigation panel:

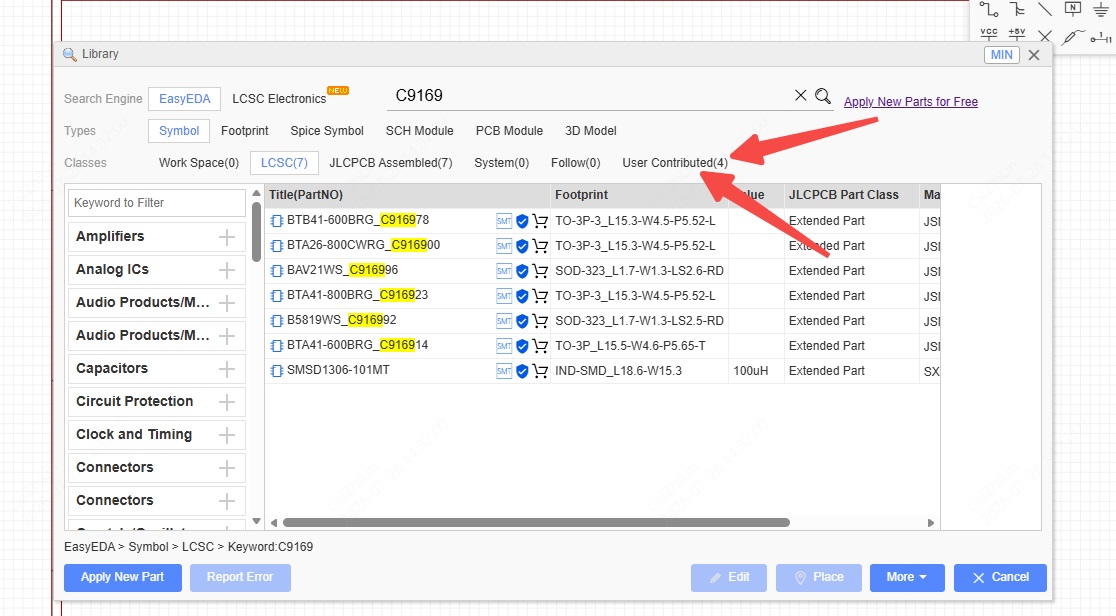

In the new components dialog, it is easy to select the right components via tags and you can set tags for your own components.
